water ring vacuum pump working animation

Water ring vacuum pump is a common type of vacuum pump,which works by forming periodic volume changes in the pump chamber through the rotation of the impeller,thereby achieving gas suction,compression,and discharge.To help you better understand and draw the animation of the Working animation of water ring vacuum pump,the following are based on detailed steps and key points.
1.Understand the basic structure of water ring vacuum pump

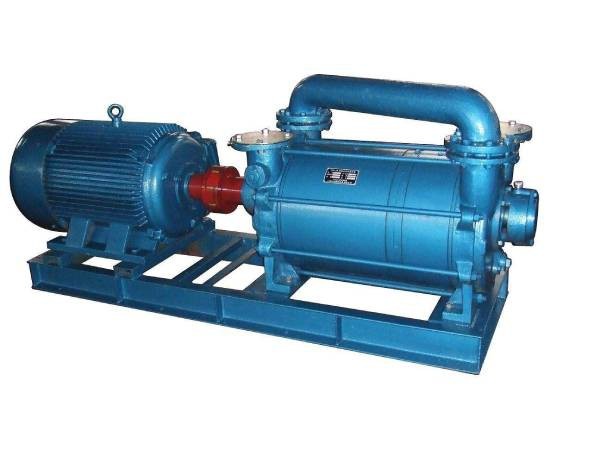

Before starting to draw a working animation,it is necessary to first understand the basic structure of a Working animation of water ring vacuum pump.The water ring vacuum pump is mainly composed of an impeller,a pump body,a suction and exhaust disc,a water ring,a suction port,an exhaust port,and an auxiliary exhaust valve.The impeller is eccentrically installed in the pump body.When the impeller rotates,water forms a closed water ring on the inner wall of the pump body.The upper inner surface of the water ring is tangent to the impeller hub,and the lower inner surface is in contact with the blade tip.
2.Describe the rotation process of the impeller
The rotation of the impeller is the core of the operation of the water ring vacuum pump.In the animation,it is necessary to demonstrate how the impeller rotates to drive water to form a water ring,and how the water ring forms a crescent shaped space together with the impeller.This space will be divided into several small chambers equal to the number of blades by the impeller,and the volume of these small chambers will change with the rotation of the impeller,thereby achieving gas suction and compression.
3.Display the process of gas suction and compression
During the rotation of the impeller,as the volume of the small chamber gradually increases,the pressure decreases and gas is drawn in from the suction port;As the volume of the small chamber gradually decreases,the pressure increases and gas is discharged from the exhaust port.The animation of the Working animation of water ring vacuum pump should clearly demonstrate the process of suction,compression,and exhaust,as well as how the gas is processed at different stages.
4.Show the function of the auxiliary exhaust valve

The auxiliary exhaust valve in the water ring vacuum pump is an important component used to eliminate the phenomena of over compression and under compression.In the animation,it can be shown that when the pump chamber reaches the exhaust pressure too early,the ball valve automatically opens and the gas is discharged,thereby avoiding the occurrence of over compression.

5.Details and optimization of animation
When drawing the animation of a water ring vacuum pump,attention should be paid to details such as the formation of the Working animation of water ring vacuum pump,the flow path of the gas,and the relative motion between the impeller and the water ring.In addition,the smoothness and visual effects of animation are also important considerations.3D modeling software can be used to create more realistic and vivid animation effects.
Through the above steps,you can gradually draw the working animation of the Working animation of water ring vacuum pump.If you would like more specific guidance or technical support,it is recommended to contact a professional animation designer or relevant technical support personnel.
